Description
Overview

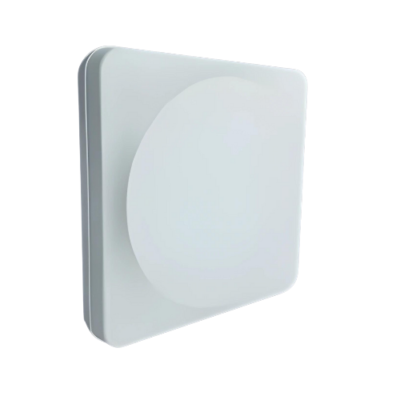

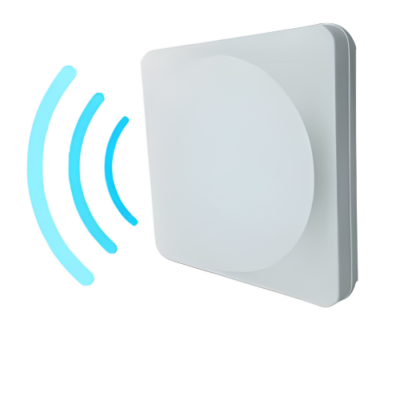

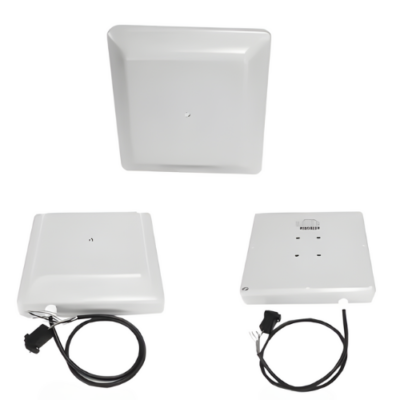

Asset Track Pro UHF Reader UHF RFID Reader Module Desktop UHF Reader Writer USB Interface is mostly used for UHF tag identification and reading, compatible with ISO 18000-6 B or C standards, and are widely used in club management, library, student status, consumption management, attendance management, dining management, swimming pool management and other systems. Top of Form
Features
- Independent Design
- Rfid Chip Design Based Low Power Consumption
- Supports Temperature and humidity Sensor Labels
- Support Iso18000-6 B or C (Epcc1G2)
- 860 MHz to 960 MHz Frequency
- FHSS or Fixed Frequency Transmission
- Optimized Multi-Label Inventory Algorithms
- RF Output Power up to 26 dBm (Adjustable)
- Built-In 8 dBi Circularly Polarized Antenna
- Effective Distance of 26.25 ft (8 m)
- The Number of Tags Read Is Greater than 50
- + 12 V DC Power Supply
- Support Rs 232 and Rs 485
- Support Epc, Tid and User Area Reading
- Support Automatic, Interactive Trigger Work Modes
- Dynamic Link Library Demo Software Source
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Power Supply | 9 V to 12 V 150 mA |
| Read Interval | < 0.5 s |
| Interface | WG26 or WG 34 or WG 98, RS 232 or RS 485, RJ45, USB, TCP |
| Read Time | < 200 ms |
| Reading Distance | 0 ft to 26.25 ft (0 m to 8 m) |
| Size | (227 mm × 227 mm × 60 mm) |
| Weight | 2.20 lb (1 kg) |
