| Air Interface Protocol |
EPC global UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operation Frequency |
860 MHz to 960 MHz |
| IC Type |
H3 or H4, M4E, M4D, M4QT |
| Memory |
EPC 96–480-bit, User 512 bit, TID 32 bit |
| EPC Memory Content |
Unique, randomized number |
| Max Read Distance |
10 ft ( > 3 m) |
| Application Surface Materials |
Glass, Plastic, Wood, Cardboard |

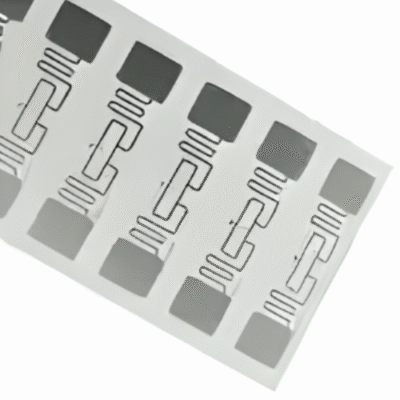

| Tag Form Factor |
Dry Inlay or wet inlay or White wet inlay(label) |
| Tag Materials |
TT Printable White Film |
| Attachment Method |
General Purpose Adhesive or enclose coated paper |
| Operating Temp |
-40 °F to 158 °F (-40 °C to +70 °C) |
| Storage Condition |
| Antenna Size |
2.755 in x 0.669 in (70 mm x 17 mm) or customer |
| Inlay Size |
3.267 in x 1 in (83 mm x 25.4 mm) |
| Weight |
0.0352 oz (< 1 g) |
