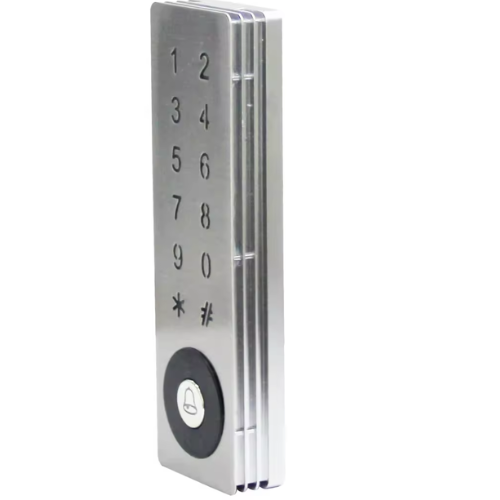

Ultra-Low Power Access Control System with Card/Password & Wiegand Output - Asset Track Pro - Image 2

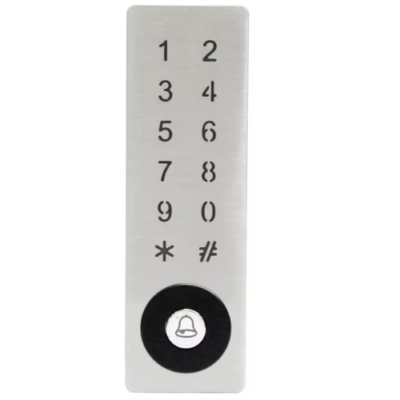

Ultra-Low Power Access Control System with Card/Password & Wiegand Output - Asset Track Pro - Image 3

Ultra-Low Power Access Control System with Card/Password & Wiegand Output – Asset Track Pro

Support Wiegand output, stores 5000 users, opens doors via card, password, or both. Ultra-low power, PC management, easy user operations.

SKU: ATPLF-354 Category:

Description

Overview

Asset Track Pro New!!! 2024 RFID Card Controller is developed by our company with touching keyboard and metallic shell. It has a simple appearance, high-end elegance and stable function. The touchable panel is adopted, which is easy to operate, and the panel is not easy to damage, easy to clean, not easy to scratch and wear, and not affected by water, oil and dust. Built-in high-grade microprocessor, strong anti-metal interference ability, high safety and reliability.It adopts non-contact cards and passwords for access control and can freely set three door opening methods: swipe cards, input password and swipe cards plus input password. Conventional non-contact ID cards or IC cards are supported. It has powerful functions such as door magnetic alarm, tamper alarm, door button, doorbell interface, security level setting, etc. It is very convenient to use and can be widely used in access control, attendance management, security alarm, parking lot management, building automation, elevator control and other fields.



Features

  • Support Wiegand output, support to store 5000 users
  • Support three ways to open doors swipe cards, input password and swipe cards plus input password
  • Ultra-low power consumption, independent password, cost-effective
  • Support operates by managing cards, add cards, delete cards, support copy users, and PC computer management.



Technical Specifications

Frequency 125kHz
Working Voltage DC 12V (±5%)
Working Current Less than 200mA
Standby Current Less than 150mA
Sensing Distance 1.18in to 1.97 in (3cm to 5cm) (effect by cards and work environment)
Working Temperature 14°F to 122°F (-10℃ to +50)
Storage Temperature −4°F to 140°F (-20℃ to +60℃)
Working Humidity 20% to 80%
Output Short Circuit Protection Time Less than 100µs
Opening Time 0 to 99s(adjustable)
Storage 5000 users
Size 6.30in × 1.97in × 0.81in (160mm x 50mm x 20.5mm) (tolerance±0.2)
Wiring Definition Red: DC 12V, Light blue: SEN (door sensor)/LED,   Orange: AL (alarm),Black: GND, Gray: BUT (exit switch)/BEEP,   Purple: BELL+ (doorbell) Brown: BELL- (doorbell), Light green: AUX+,     Yellow: NC (normally closed),Pink: COM (common), Green: WD0/RXD (switched by 5,6 dial),White: WD1/TXD (switched by 5,6 dial),   Blue: NO
