Description
Overview

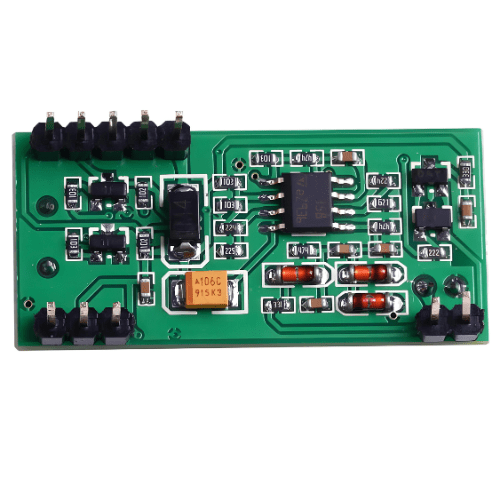

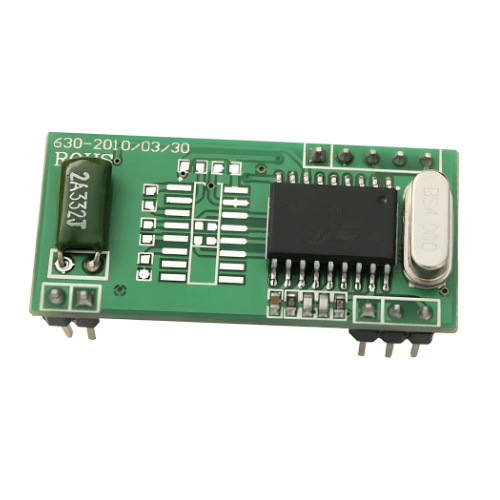

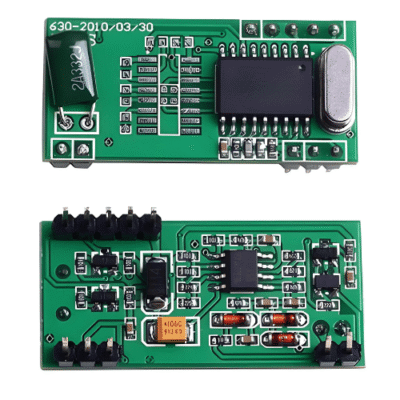

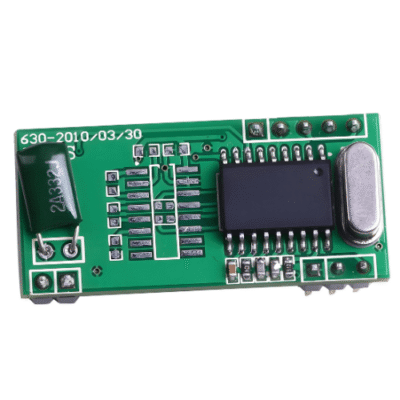

Asset Track Pro low consumption card RFI module is designed for reading code from 125 KHz card compatible read-only tags and cards. It can be applied in office or home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Technical Specifications
| Frequency | 125 KHz |
| Interface | Wiegand 26 TTL RS 232 |
| Reading Distance | > 0.16 ft (5 cm) |
| Power Supply | DC 5 V or 3.3 V |
| Colour | Standard |
| Support Card | EM TK 4100 EM 4200 and its compatible chips |
| Application | Implanting to devices such handheld terminal |
| Operating Temperature | -4 °F to 158 °F (-20 °C to + 70 °C) |
| Module Size | 1.54 in X 0.75 in X 0.35 in (39 mm X 19mm X 9 mm) |
| Antenna Size | 1.00 in X 1.40 in (25.5 mm X 35.5 mm) |
