Ultrasonic Liquid Level Sensor for LoRaWAN Monitoring - Asset Track Pro
Ultrasonic Liquid Level Sensor for LoRaWAN Monitoring - Asset Track Pro - Image 2

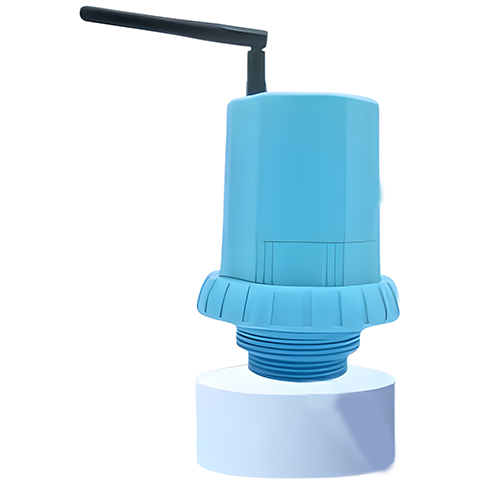

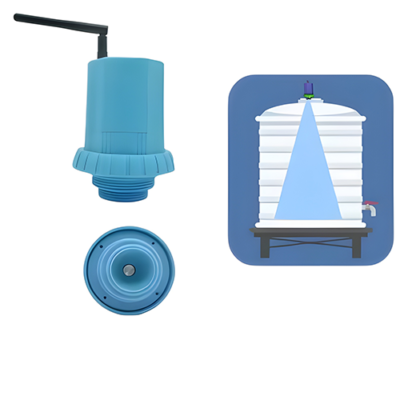

Ultrasonic Liquid Level Sensor for LoRaWAN Monitoring – Asset Track Pro

Discover accurate ultrasonic liquid level sensing with LoRaWAN. Durable IP67 design and long battery life. Perfect for remote monitoring

SKU: ATPOLED-199 Category:

Description

 Features

  • Ultrasonic-based non-contact measurement, 16.4 ft measuring range
  • Remote monitoring through wireless module
  • Threaded mounting or screw mounting
  • Inner battery 8500 mAh, low power consumption
  • Option for external power supply
  • Option for GPS module
  • IP67 for outdoor using
  • TCP protocol with SDk in Python, Java-script
  • Dashboard monitoring or email notification



 Technical Specifications

Use Level remote monitoring
Mounting Type Threaded mounting or screw mounting
Type Liquid Level Sensor
Theory or Principle Ultrasonic
Detection Range 7.87 in to 196.85 in (20 cm to 500 cm)
Blind Area 0 in to 7.87 in (0 cm to 20 cm)
Accuracy 1.18 in (3 cm)
Resolution 1 mm or 0.1% FS, the bigger one
Driving Frequency 40 kHz
Inner Battery ER26500, 8500 mAh
Power 8500 mAh battery or 3.6 V DC
Wireless NB-IoT, Sigfox, LoRaWAN, 4G, Cat-M
Liquid Diesel, gasoline, water, LPG, Ethanol, and other liquids
Protection Level IP67
Color Black
Operating Temperature -4 °F to 158 °F (-20 °C to 70 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Dimension 4.82 in × 3.74 in × 3.74 in (12.25 cm × 9.5 cm × 9.5 cm)
