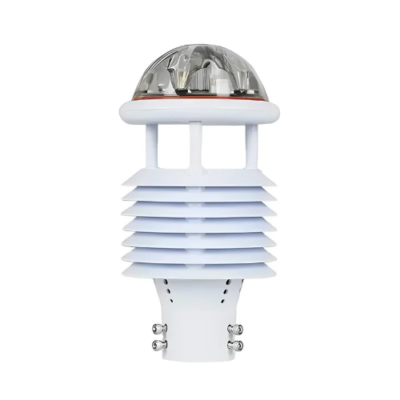

Ultrasonic Mini Weather Station with 12 Monitoring Items - Asset Track Pro

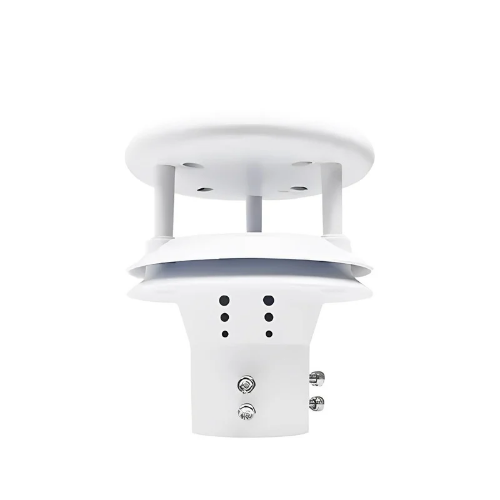

Ultrasonic Mini Weather Station with 12 Monitoring Items - Asset Track Pro - Image 2

Ultrasonic Mini Weather Station with 12 Monitoring Items – Asset Track Pro

Unlock precise weather monitoring with 12 parameters, featuring modbus protocol and flexible 485 transmission for efficient environmental tracking

SKU: ATPWPS-106 Category:

Description

Features

  • Ultrasonic probe hidden in the top cover to avoid the interference of rain and snow accumulation and avoid the obstruction of natural wind
  • The principle is to transmit a continuous frequency conversion ultrasonic signal, and detect the wind speed and direction by measuring the relative phase.
  • PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall twelve elements integrated
  • Adopt advanced sensor technology, real-time measurement, no starting wind speed
  • Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system
  • High integration, no moving parts, zero wear
  • Maintenance-free, no on-site calibration
  • Adopting ASA engineering plastics for outdoor applications, does not change color all year round
  • The standard configuration of product design output signal is RS485 communication interface (MODBUS protocol); optional 232, USB, Ethernet interface, support real-time data reading
  • Optional wireless transmission module, the minimum transmission interval is 1 minute
  • The probe is a snap-in design, which solves the problem of inaccurate looseness during transportation and installation



Technical Specifications

Monitoring Parameter PM2.5, PM10, TSP, CO, NO₂, SO₂, O₂, temperature, relative humidity, wind speed, wind direction, atmospheric pressure, piezoelectric rainfall, optical rainfall, illuminance, total radiation, noise, and carbon dioxide
Transmission 485
Protocol Modbus
Output Voltage 12V, 24V
Standard Wiring Length 1 m (3.28 ft)
Accuracy and Resolution
PM2.5, PM10, TSP 0-1000 µg/m³, 1 µg/m³ resolution, ±10% accuracy (<500 micrograms)
CO 0-20 ppm, 0.01 ppm resolution, ±5% F.S accuracy
NO₂, SO₂, O₂ 0-1 ppm, 0.001 ppm resolution, ±5% F.S accuracy
Relative Humidity 0-100% RH, 0.01% RH resolution, ±3% RH accuracy
Wind Speed 0-60 m/s, 0.01 m/s resolution, ±0.1 m/s accuracy
Wind  Direction 0-360°, 1° resolution, ±2° accuracy
Atmospheric Pressure 30-110 kPa, 0.01 kPa resolution, ±0.25% accuracy
Piezoelectric Rainfall 0-4 mm/min, 0.01 mm resolution, ≤±4% accuracy
Optical Rainfall 0-4 mm/min, 0.1 mm resolution, ≤±4% accuracy
Illuminance 0-20 W/LUX, 1 lux resolution, ≤±3% accuracy
Total Radiation 0-1800 W/m², 1 W/m² resolution, ≤±3% accuracy
Noise 30-120 dB, 0.1 dB resolution, ±1.5 dB accuracy
Carbon Dioxide 400-5000 ppm, 1 ppm resolution, ±(50 ppm + 5% of read value) accuracy
Temperature -40°F to 140°F (-40°C to 60°C), 32.01°F (0.01°C) resolution, ±0.3°C (25°C) accuracy
