| Type |

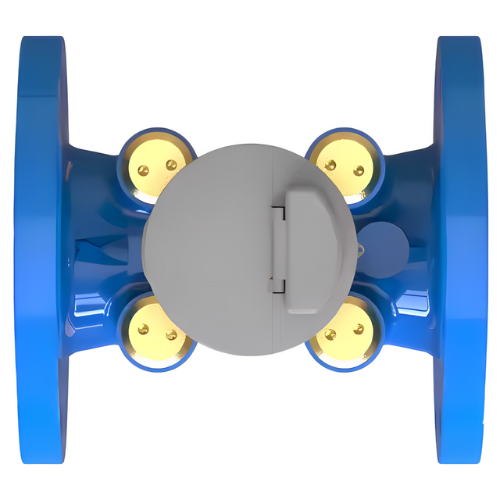

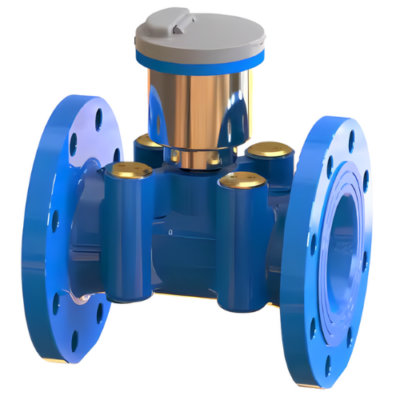

Ultrasonic meters |
| Customized Support |
OEM, ODM, OBM |
| Output Options |
LoRaWAN, LoRa, NB-IoT, 4G, RS485, MBUS |
| Feature |
Leakage detection, no moving parts, built in pressure sensor |
| Dynamic Range |
Q3/Q1 = 250 (160 or 315 or 400 or 500) |
| Pressure Loss Class |
∆P63 (∆P40/∆P25) |
| Pressure Class |
MAP10 (MAP16) |
| Electromagnetic Class |
E1 (E2) |
| Flow Sensitivity Class |
U5/D3 (U0/D0) |
| Size |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
| Normal Flow Q3 (m3/h) |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
| Starting Flow (m3/h) |
0.02 |
0.025 |
0.03 |
0.035 |
0.05 |
0.07 |
0.1 |
0.15 |
0.25 |
| Environmental Class |
Class B/O |
| Communication Interfaces |
LoraWan, Lora, NB-IoT, 4G, RS485, MBUS, Pulse, 4 mA to 20 mA, etc. |
| Data Storage |
Data logger with 730 daily totals and 24 monthly totals |
| Power Supply |
DC 3.6 V, Lithium Battery |
| Indication Device |
9 digits |
| Standard |
ISO4064:2014 or OIML: R49-2013 |
| Protection Class |
IP68 |
| Temperature Class |
T30 (T50) |
| Size |
DN50 to DN2400 |
| Size |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
| Dimensions |
L |
7.87 in (20 cm) |
7.87 in (20 cm) |
8.85 in (22.5 cm) |
9.84 in (25 cm) |
9.84 in (25 cm) |
11.81 in (30 cm) |
13.77 in (35 cm) |
17.71 in (45 cm) |
19.68 in (50 cm) |
| W |
6.49 in (16.5 cm) |
7.28 in (18.5 cm) |
7.87 in (20 cm) |
8.85 in (22.5 cm) |
10.23 in (26 cm) |
11.41 in (29 cm) |
13.77 in (35 cm) |
16.33 in (41.5 cm) |
18.7 in (47.5 cm) |
| H1 |
5.94 in (15.1 cm) |
6.14 in (15.6 cm) |
6.77 in (17.2 cm) |
7.04 in (17.9 cm) |
7.48 in (19 cm) |
8.03 in (20.4 cm) |
8.89 in (22.6 cm) |
10.31 in (26.2 cm) |
11.22 in (28.5 cm) |
| H |
9.09 in (23.1 cm) |
9.64 in (24.5 cm) |
10.55 in (26.8 cm) |
11.29 in (28.7 cm) |
12.44 in (31.6 cm) |
13.54 in (34.4 cm) |
15.55 in (39.5 cm) |
18.18 in (46.2 cm) |
20.39 in (51.8 cm) |
