USB NFC RFID Reader 13.5 MHz & Writer Module with RF Level Detection - Asset Track Pro
USB NFC RFID Reader 13.5 MHz & Writer Module with RF Level Detection - Asset Track Pro - Image 2

USB NFC RFID Reader 13.5 MHz & Writer Module with RF Level Detection – Asset Track Pro

Compact USB NFC RFID reader/writer module operating at 13.56 MHz. Supports ISO 14443 A protocol with RF level detection, no drivers required. Ideal for Android OS.

SKU: ATPHMOD-106 Category:

Description

Features

  • USB NFC Full Solution
  • Includes RF Level Detector
  • No Drivers Needed.

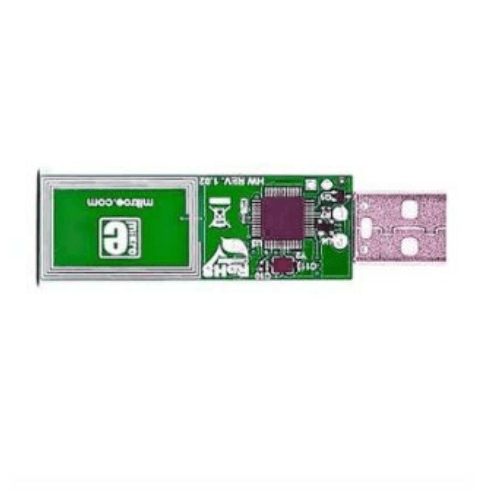

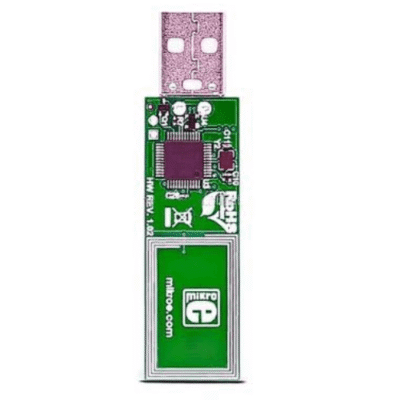

  • HW Solution with PN 7150 + LPC 11 U 24, Compact



Technical Specifications

Operating System Android
Interface USB 2.0
Frequency 13.56 MHz
Output Power 0 dBm to 33 dBm
Read Range 1.97 in to 1.97 in (0.16 ft to 0.33 ft)
Protocol ISO 14443 A
Dimensions 1.10 in Height (28 mm)
Weight 2.46 oz (70 g)
