Description
Overview

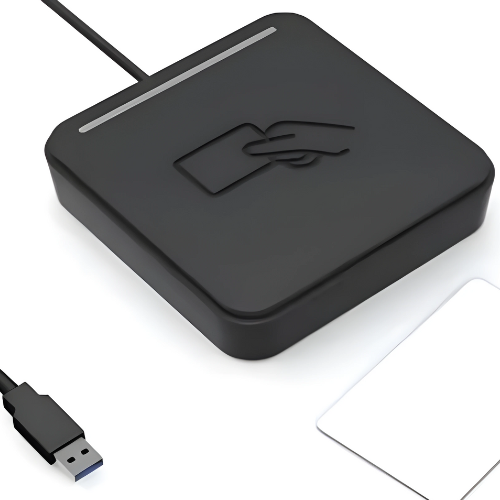

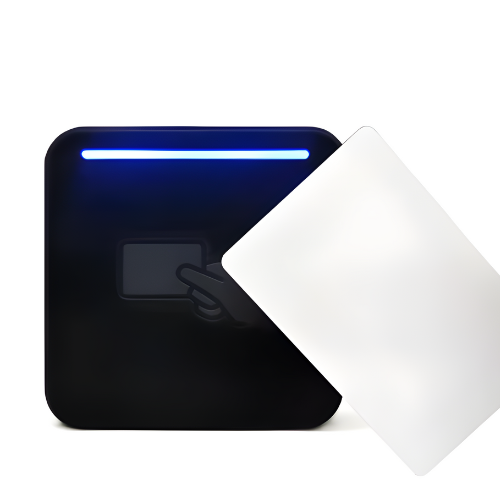

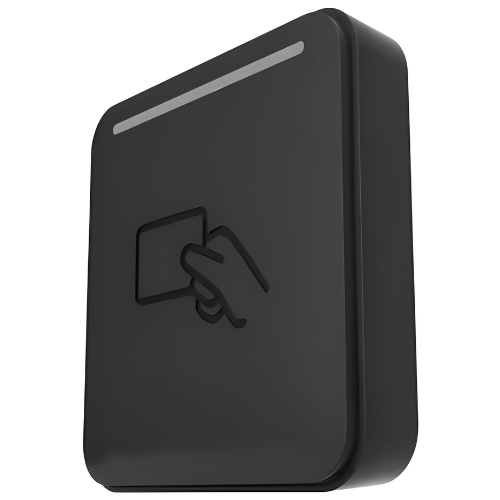

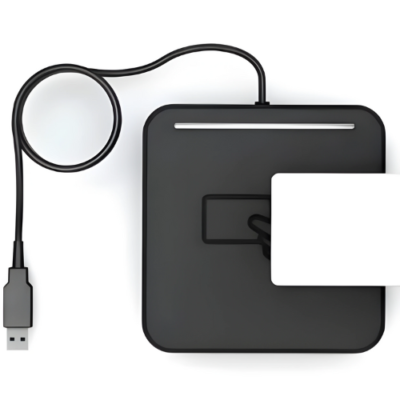

Asset Track Pro USB drive less read or write desktop card issuer is a contactless smart card serial number reader developed based on ISO or IEC14443 A, ISO or EM4001 international standard protocol. It adopts our self-developed high-performance RF card reading circuit design; it has the characteristics of high integration, strong anti-interference ability, small size, stable performance, high-cost performance and easy to use.
Features
- Fast decoding, full transmission
- Accurate reading of RFID card serial number
- The built-in buzzer
- Exquisite craft, scratch-resistance and durable
- Support multiple system
Technical Specifications
| Working Mode | Active or passive mode |
| Protocol | ISO/IEC 14443A, ISO/EM4001 |
| Standard | ISO 18000-6C |
| Size | 3.92 in x 3.92 in x 0.78 in (99.5 mm x 99.5 mm x 19.8 mm) error ± 0.12 in (± 3 mm) line length 39.37 in (1000 mm) error ± 0.39 in (± 10 mm) |
| International Standard | ISO or IEC 14443A, ISO or EM4001 |
| Support The Card | Mf-s50, MF-S70, 1208-CPU+MF composite card, MF3-DESFIRE Ev1 card, Ntag213 Card,15693, 14443B, id card |
| Electrical Parameters | Working voltage: DC 5 V (± 4 %) Current: standby current less than 80 mA; card current is less than 200 mA |
| Operating Distance | 0.79 in to 3.14 in (2 cm to 8 cm) |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -4 °F to 149 °F (-20 °C to 65 °C) |
| Operating Frequency | 13.56 MHz or 125 KHz |
