| Use |
FTTH/FTTx/HFC |
| LCD |
800×480 TFT |
| Power Supply |
Internal Rechargeable 6600mAH Li-ion battery |
| Battery Duration |
4 to 5 hours |
| Working Moisture |
5% to 90% |
| Support 7 VDSL2 Profiles |
profile 8a, 8b, 8c, 8d, 12a, 12b, 17a |

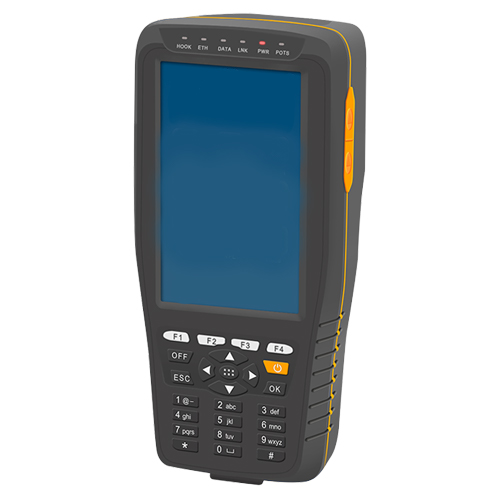

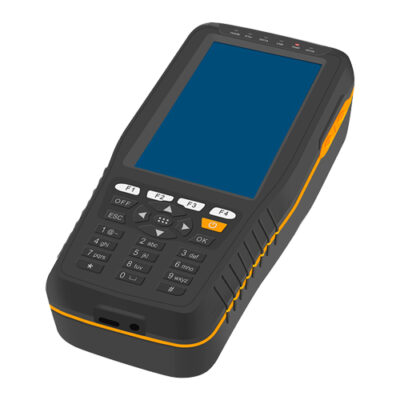

| Type |
VDSL2 Tester |
| Designed For |
xDSL line testing and maintenance (ADSL, ADSL2, ADSL2+, READSL, VDSL2, etc.) |
| Testing Functions |
xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication |
| Additional Functions |
Optical Power Meter, Visual Fault Locator, TDR function |
| Display |
True color LCD |
| Power |
6600mAh rechargeable battery |
| Management Software |
Powerful management software included |
| Standards |
ANSI T1.413 issue #2, ITU G.992.5(ADSL2+) Annex L |
| Up Channel Rate |
0 to 1.2Mbps |
| Down Channel Rate |
0 to 24Mbps |
| Up/Down Attenuation |
0 to 63.5dB |
| Up/Down Noise Margin |
0 to 32dB |
| Output Power |
Available |
| Error Test |
CRC, FEC, HEC, NCD, LOS |
| Display DSL Connect Mode |
Available |
| Display Channel Bit Map |
Available |
| Standards |
ITU G.994.1(G.hs), ANSI T1.413 Issue # 2 |
| Up Channel Rate |
0 to 1Mbps |
| Down Channel Rate |
0 to 8Mbps |
| Up/Down Attenuation |
0 to 63.5dB |
| Up/Down Noise Margin |
0 to 32dB |
| Output Power |
Available |
| Error Test |
CRC, FEC, HEC, NCD, LOS |
| Display DSL Connect Mode |
Available |
| Display Channel Bit Map |
Available |
| DC Voltage (V) |
0 to 400 |
| AC Voltage (V) |
0 to 400 |
| Loop Resistance(Ω) |
0 to 20000 |
| Capacitance (nF) |
0 to 1000 |
| Insulation Resistance (MΩ) |
0 to 50 |
| Measurement Range |
-70 to +10dBm |
| Wavelength |
0.033 in, 0.051 in, 0.052 in, 0.059 in, 0.061 in, 0.064 in (0.085 cm, 0.13 cm, 0.131 cm, 0.149 cm, 0.155 cm, 0.1625 cm) |
| Output Power |
1mw |
| Wavelength |
(0.065 cm ± 0.002 cm) 0.0256 in ± 0.0008 in |
| Test Range |
(2.5 km) 1.55 miles |
| Dead Zone |
3.28ft (<1m) |
| Resolution Rate |
3.28084 ft (1m) |
| LCD |
800×480 TFT |
| Power Supply |
Internal Rechargeable 6600mAH Li-ion battery |
| Working Temperature |
0 C to 40 C |
| Dimensions |
6.69 in x 2.76 in x 2.05 in (17 cm x 7 cm x 5.2 cm) |
| Weight |
1.32 lb (<0.6 kg) |
