| Working Frequency |
865 MHz to 868 MHz or 920 MHz to 925 MHz or 902 MHz to 928 MHz |
| Communication Port |
RS232, RJ45, WiFi, 4G (remote online firmware upgrade) |
| Chip |
Impinj E710 chip |
| Reading Rate |
5 dBm to 32 dBm (adjustable) |
| RF Power |
>900 times per s |

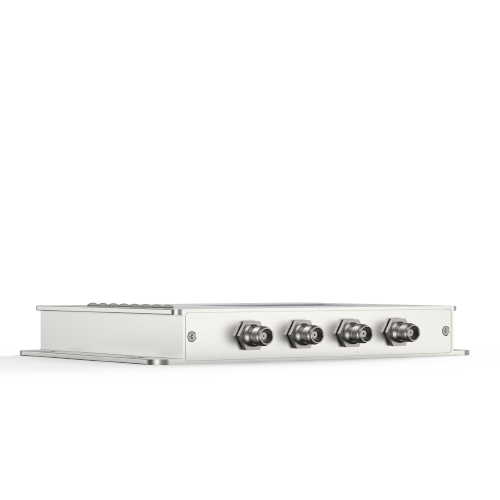

| Antenna Interface |
4 TNC female |
| RSSI |
Supported |
| RS232 Baud Rate |
115200 bps (default) |
| Shell Material |
Aluminum alloy |
| I/O |
2 trigger inputs, 2 relay outputs |
| Operate Voltage |
DC 9 V to 24 V |
| Communication |
RS232, TCP/IP (PoE optional) |
| Communication (Option 1) |
RS232, TCP/IP, PoE |
| Communication (Option 2) |
RS232, TCP/IP, WiFi |
| Communication (Option 3) |
RS232, TCP/IP, 4G GPRS |
| SDK |
Demo, C++, C#, Java, Android SDK |
| Operating Temp |
-4 °F to +167 °F (-20 °C to +75 °C) |
| Storage Temp |
-40 °F to +176 °F (-40 °C to +80 °C) |
| Humidity |
5 % to 90 % non-condensing 77 °F (+25°C) |
| Item Size |
9.69 in x 6.30 in x 1.18 in (246 mm x 160 mm x 30 mm) |
| Net Weight |
2.87 lb (1.3 kg) |
