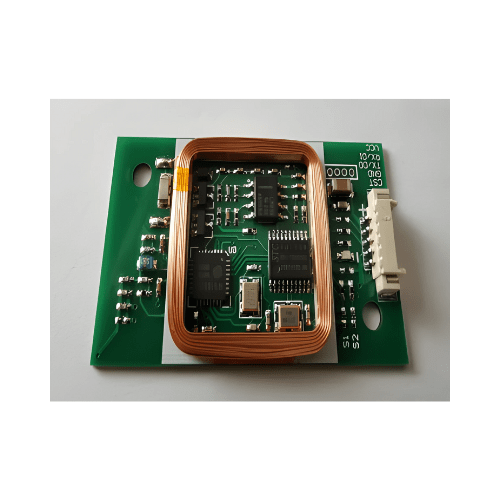

Asset Track Pro 125 KHz 13.56 MHz TK 4100 MIFARE RFID Reader Module

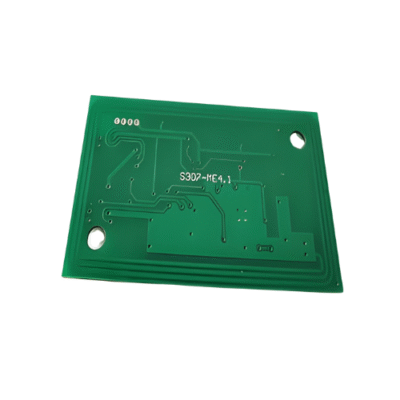

Asset Track Pro 125 KHz 13.56 MHz TK 4100 MIFARE RFID Reader Module - Image 2

Asset Track Pro 125 KHz 13.56 MHz TK 4100 MIFARE RFID Reader Module

Dual-frequency contactless RFID card reader supporting EM 4200, TK 4100, T 5577, EM 4305, NFC, UL cards. 5V or 3.3V power, built-in reading chip.

SKU: ATPHMOD-15 Category:

Description

Features

  • Card type of 125 KHz and 13.56 MHz
  • Support cards of Em 4200 or Tk 4100 or T 5577 or Em 4305, NFC, UL
  • Contactless RFID Card Reader
  • Card reading distance of 0 ft to 0.26 ft
  • Power Supply of 5 V or 3.3 V
  • Built-in special card reading chip



Technical Specifications

Frequency 13.56 MHz and 125 kHz
Interface TTL and Wiegand 26 or Wiegand 34 and USB
Protocol ISO14443A/B, ISO15693 & ISO18092
Supporting Card EM 4100 or EM 4200 or TK 4100 MIFARE S 50 or S 70 or Ultralight
Power Supply 3.3 V to 5 V
Current <70 mA
Antenna Integrated
Reading Distance 0 in to 1.97 in (0 cm to 5 cm)
Storage Temperature -4 °F to 176 °F (-20 °C to 80 °C)
Operating Temperature 14 °F to 122 °F (-10 °C to 50 °C)
Dimensions 1.77 in x 0.98 in (45 mm x 25 mm)
